Classification Trees

• Very similar to regression trees except it is used to predict a qualitative response rather than a quantitative one
• We predict that each observation belongs to the most commonly occuring class of the training observations in a given region

Fitting classification trees

• We use recursive binary splitting to grow the tree
• Instead of RSS, we can use:
• Gini index:

$$G=\sum _{k=1}^K{\hat{p}}_{mk}(1-{\hat{p}}_{mk})$$

• This is a measure of total variance across the $K$ classes. If all of the ${\hat{p}}_{mk}$ values are close to zero or one, this will be small
• The Gini index is a measure of node purity small values indicate that node contains predominantly observations from a single class
• In R, this can be estimated using the gain_capture() function.

Classification tree - Heart Disease Example

• Classifying whether 303 patients have heart disease based on 13 predictors (Age, Sex, Chol, etc)

1. Split the data into a cross-validation set

heart_cv <- vfold_cv(heart, v = 5)

2. Create a model specification that tunes based on complexity, $\alpha$

tree_spec <- decision_tree(
  cost_complexity = tune(),
  tree_depth = 10,
  mode = "classification") %>%
  set_engine("rpart")

3. Fit the model on the cross validation set

grid <- expand_grid(cost_complexity = seq(0.01, 0.05, by = 0.01))
model <- tune_grid(tree_spec,
                   HD ~ Age + Sex + ChestPain + RestBP + Chol + Fbs +
                     RestECG + MaxHR + ExAng + Oldpeak + Slope + Ca,
                   grid = grid,
                   resamples = heart_cv,
                   metrics = metric_set(gain_capture, accuracy))

5. Choose $\alpha$ that minimizes the Gini Index

best <- model %>%
  select_best(metric = "gain_capture") %>%
  pull()

6. Fit the final model

final_spec <- decision_tree(
  cost_complexity = best,
  tree_depth = 10,
  mode = "classification") %>%
  set_engine("rpart")
final_model <- fit(final_spec,
    HD ~ Age + Sex + ChestPain + RestBP + Chol + Fbs +
      RestECG + MaxHR + ExAng + Oldpeak + Slope + Ca + Thal,
    data = heart)

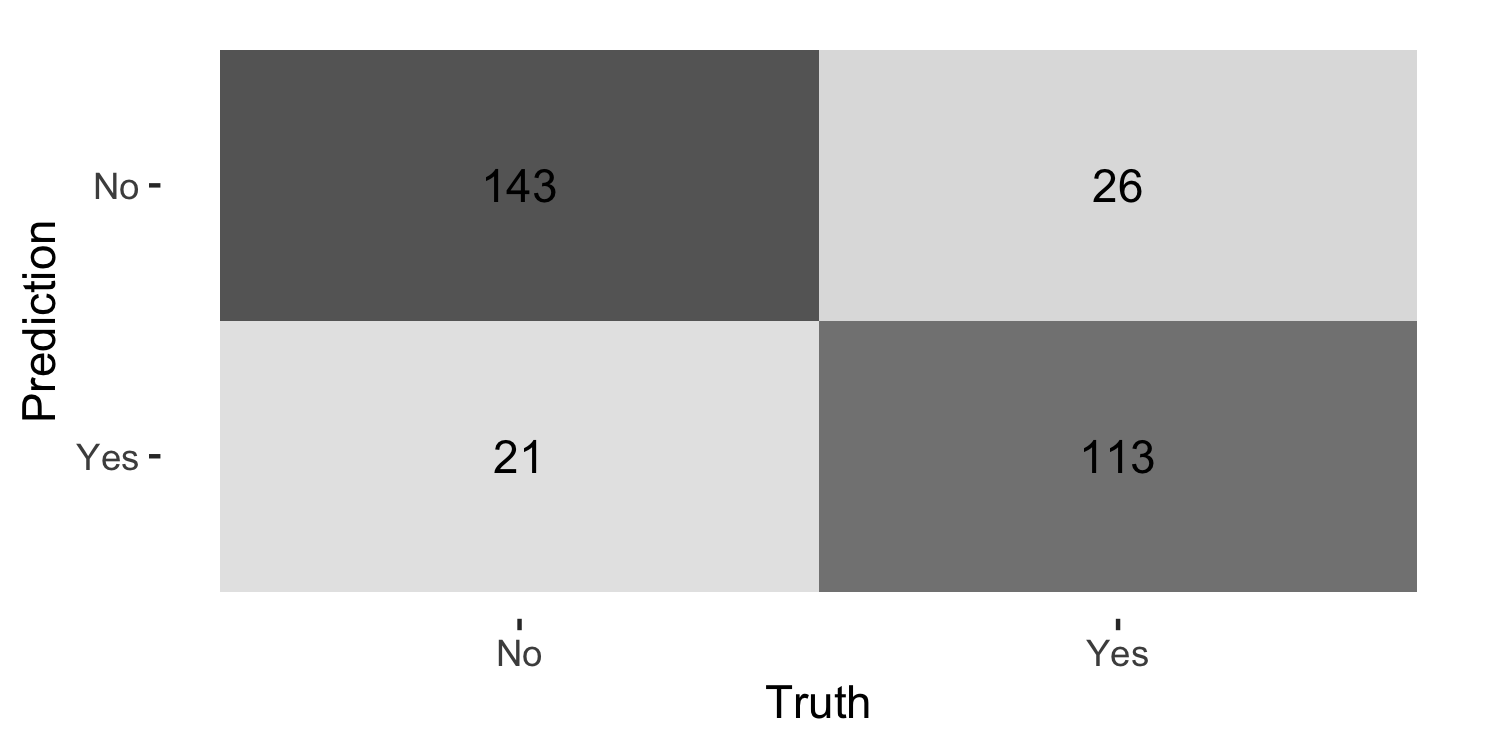

7. Examine how the final model does on the full sample

final_model %>%
  predict(new_data = heart) %>%
  bind_cols(heart) %>%
  conf_mat(truth = HD, estimate = .pred_class) %>%
  autoplot(type = "heatmap")
